Aimoptic Venom Red Dot Sight

Venom Red Dot — 3 MOA Dot (VMD-3103)

A 3 MOA dot promotes fast transitions, while providing a precise point of aim.

The durable, machined aluminum housing ensures the unit will stand up to whatever you throw at it. High-quality, fully multi-coated lens offers a clean, wide field of view. Our top-load system makes changing the CR 1632 battery a snap and alleviates the need to remove the sight when switching the power source. The power and dot intensity controls are conveniently located on the left side of the unit. Flush 1 MOA windage and elevation adjustments are super sleek and make sighting in a breeze.

The Venom comes with a Picatinny mount—weighs 1.6 ounces with mount.

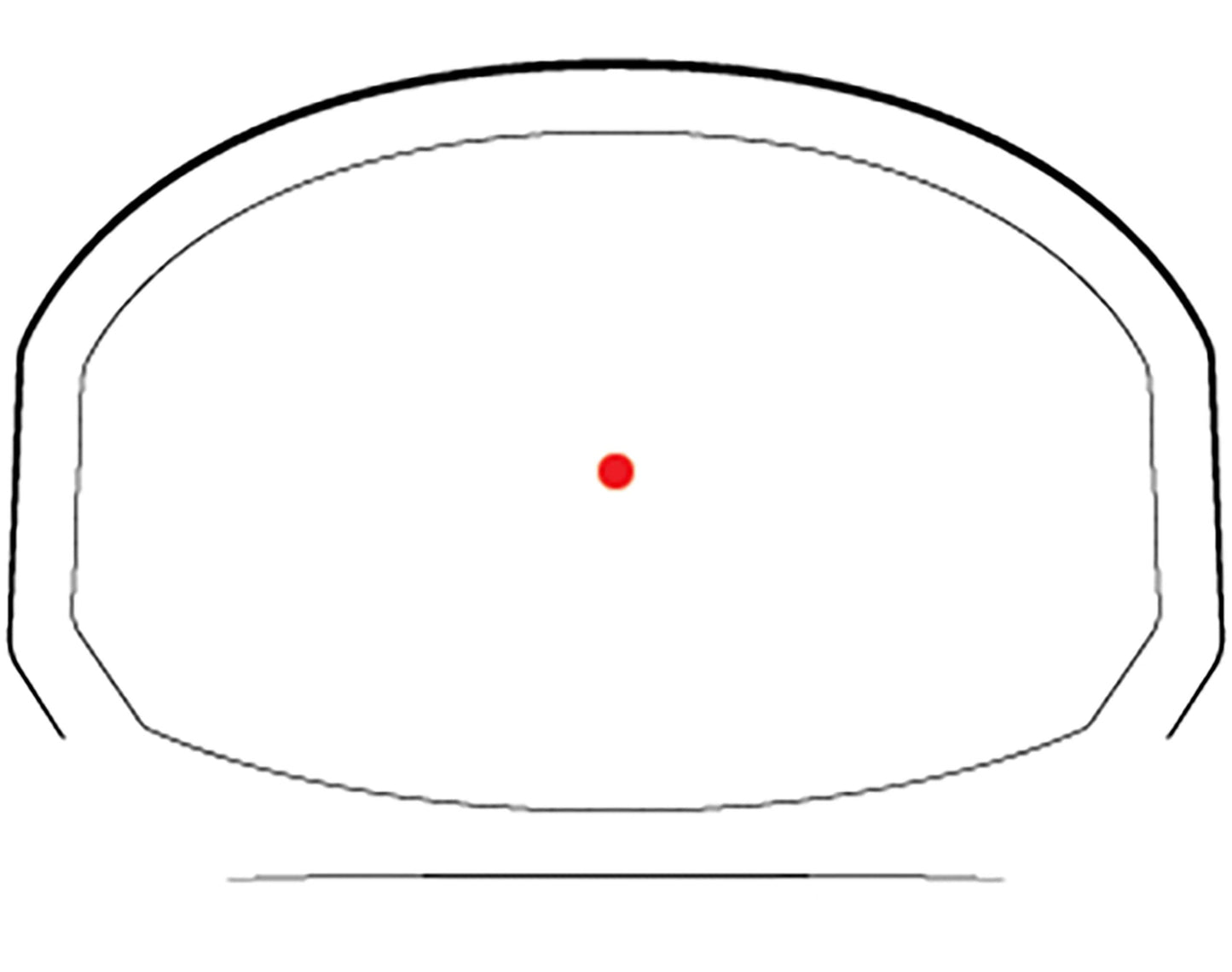

3 MOA Dot Reticle

The daylight bright red dot is easy to see regardless of lighting conditions or background. Choose between 10 levels of brightness in manual mode or switch to auto mode. Up to 150 hours of use at highest setting. Use at lower settings can allow up to 30,000 hours.

Windage and Elevation Adjustment

The Venom features adjustable elevation and windage dials with 1 MOA clicks. To adjust the elevation and windage settings, turn the dials up or down or left or right as indicated by the arrows.

Mounting the Venom

The Venom red dot is shipped from the factory with a low rail mount that clamps to a slotted spec base rail. In addition to the supplied low rail mount, an optional riser mount is included.

1. Attach the low rail mount to the Venom using the included hardware.

2. Attach the Venom to the base rail, making sure the recoil lug is solidly seated in the base groove.

3. Check to see that the clamp is fully down and hooked around the outside of the base.

4. Press the Venom down and forward and firmly tighten base clamp using large coin or flathead screwdriver.
